Marine Specifications

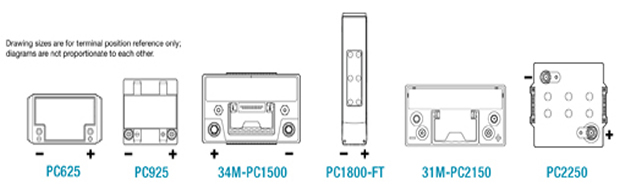

Terminal Layouts

MODEL Voltage PHCA**
(5 sec.)		 CCA* HCA MCA Nominal Capacity Reserve
Capacity
Minutes		 Length
inches
(mm)		 Width
inches
(mm)		 Height
inches
(mm)		 Weight
lbs
(kg)		 Terminal Torque
Specs
in-lbs
(Nm max)		 Internal
Resistance
(mΩ)		 Short
Circuit
Current
(20 Hr
Rate-Ah)		 (10 Hr
Rate-Ah)
PC625
PC625		 12 625 265 440 350 18 17 27 6.70
(170.2)		 3.90
(99.1)		 6.89
(175.0)		 13.2
(6.0)		 M6
Stud		 40
(4.5)		 7 1800A
PC925
PC925		 12 925 380 625 500 28 27 52 6.64
(168.6)		 7.05
(179.0)		 5.04
(128.0)		 26.0
(11.8)		 M6
Receptacle†
or SAE 3/8"
Receptacle		 60
(6.8)		 5 2400A
PC1500
34M-PC1500		 12 1500 880 1250 1050 68 62 135 10.85
(275.6)		 6.76
(171.7)		 7.82
(198.6)		 49.5
(22.4)		 SAE
and 3/8"
Stud (Pos.)
5/16" Stud
(Neg.)		 70
(79)		 2.5 3100A

PC1800-FT		 12 1800 1300 1600 1450 214 190 475 22.75
(577.9)		 4.90
(125.0)		 12.44
(316.0)		 132.3
(60.0)		 3/8" Stud 80
(9.0)		 3.3 3800A
PC2150
31M-PC2150		 12 2150 1150 1545 1370 100 92 205 13.00
(330.2)		 6.80
(172.7)		 9.47
(240.5)		 77.8
(35.3)		 SAE
and 3/8"
Stud (Pos.)
5/16" Stud
(Neg.)		 150-220
(16.9-
22.6)		 2.2 5000A
PC2250
PC2250		 12 2250 1225 1730 1550 126 114 240 11.26
(286.0)		 10.59
(269.0)		 9.17
(233.0)		 86.0
(39.0)		 Dual
SAE/DIN
Terminal
and 3/8"
Stud		 100
(11.0)
for 3/8"
stud only		 2.1 5000A

*Cold Start Performance S.A.E J537 JUNE 82
**Pulse Current
Operating temperature range:
-40°C (-40°F) to 45°C (113°F) for PC625 and PC925
-40°C (-40°F) to 80°C (176°F) for
34M-PC1500 and 31M-PC2150
-30°C (-22°F) to 40°C (104°F) for PC2250
-40°C (-40°F) to 50°C (122°F) for PC1800-FT


Constant voltage portable charger parameters:
Standby, per 12V battery 13.5-13.8V no current limit required
Cyclic, per 12V battery (16-hour recharge) 14.4-14.8V no current limit required
Typical deep-cycle life at 25°C/77°F
at a 5-hour rate		 400 cycles at 80% DOD
Typical service life at 25°C/77°F Medium to heavy duty usage – 3+ years
Light duty usage – 5+ years

height adapterOptional height adapter

May be used on the 34M-PC1500 for installations where a group 24 or group 27 is required. Snap the adapter securely into place on the bottom of the 34M-PC1500 battery. In some installations, a 34M-PC1500 with this adapter may be used to replace a group 24F or 27F depending on required cable length.
